This guide walks you through replacing the controller on your FavoriteBikes Hybrid CSC electric bike.
📺 Video Guide
Watch the step-by-step video tutorial:
🔧 Tools You'll Need
- New motor controller compatible with Hybrid CSC
- Screwdriver set (Phillips and flathead)
- Zip ties
- Phone/camera to photograph wiring
Step 1: Power Off and Remove the Battery
- Turn off the power using the display or power button.
- Remove the battery and store it safely away.
Step 2: Locate the Motor Controller

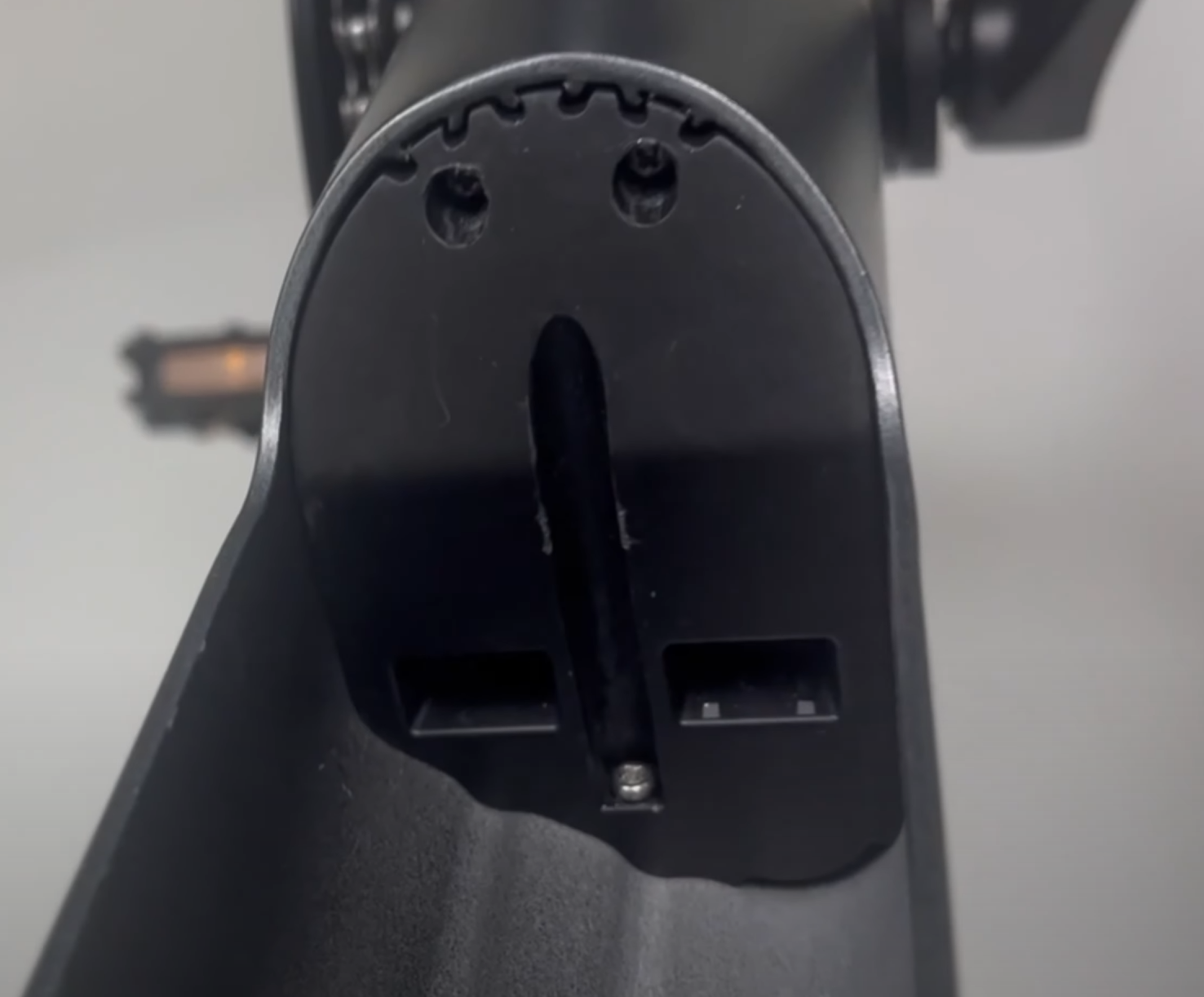

The controller is inside the frame's downtube. Remove the three screws holding the cover.
Step 3: Disconnect the Wires
Before disconnecting, photograph the wiring layout!

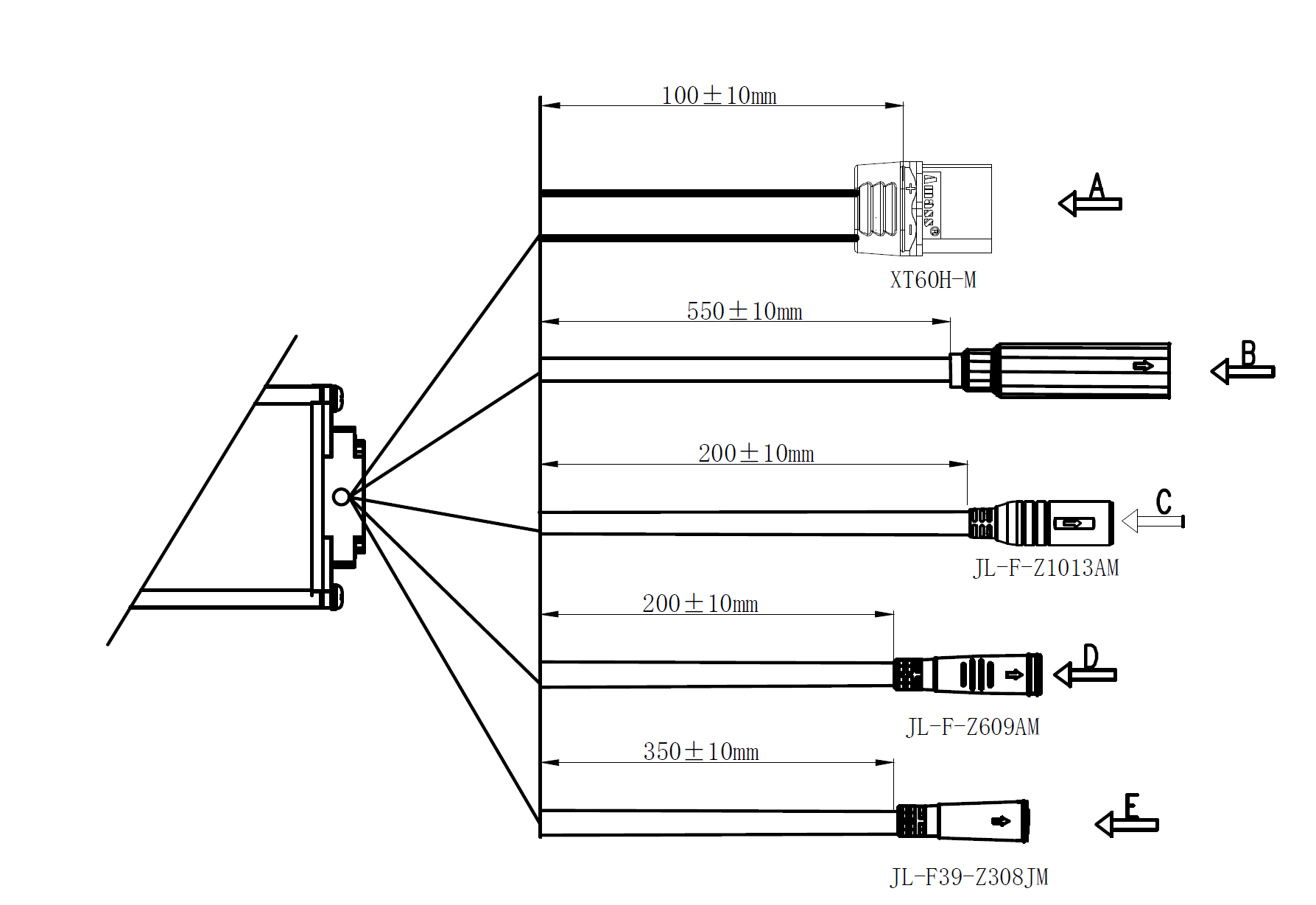

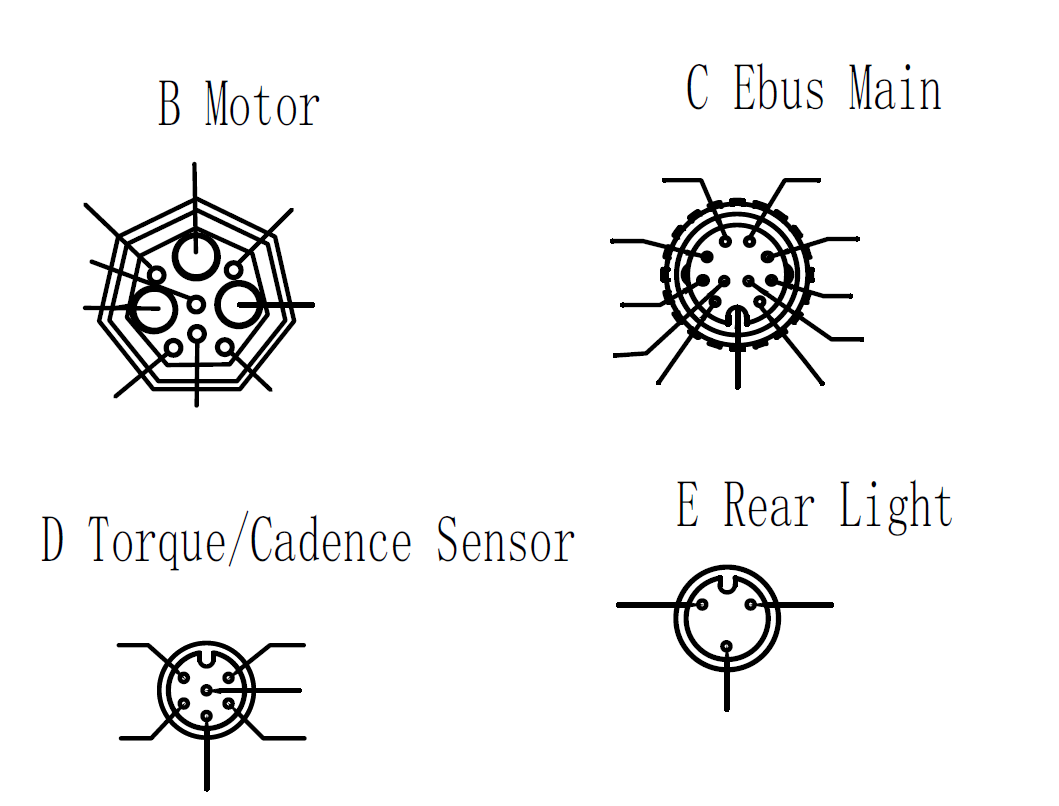

Hybrid CSC Controller Wiring:
Label each wire, then unplug connectors carefully.
Step 4: Remove the Old Controller
With all wires disconnected, remove the old controller from the frame.
Step 5: Install New Controller
Place the new controller in the frame and reconnect all wires per your photos.
⚠️ Critical: Push All Connectors Fully In
Every connector must be pushed all the way to the end until it seats firmly. A partially inserted connector can cause:
- Uncontrolled motor spinning — the motor may spin on its own
- Connector damage — loose connections burn out the connector
|

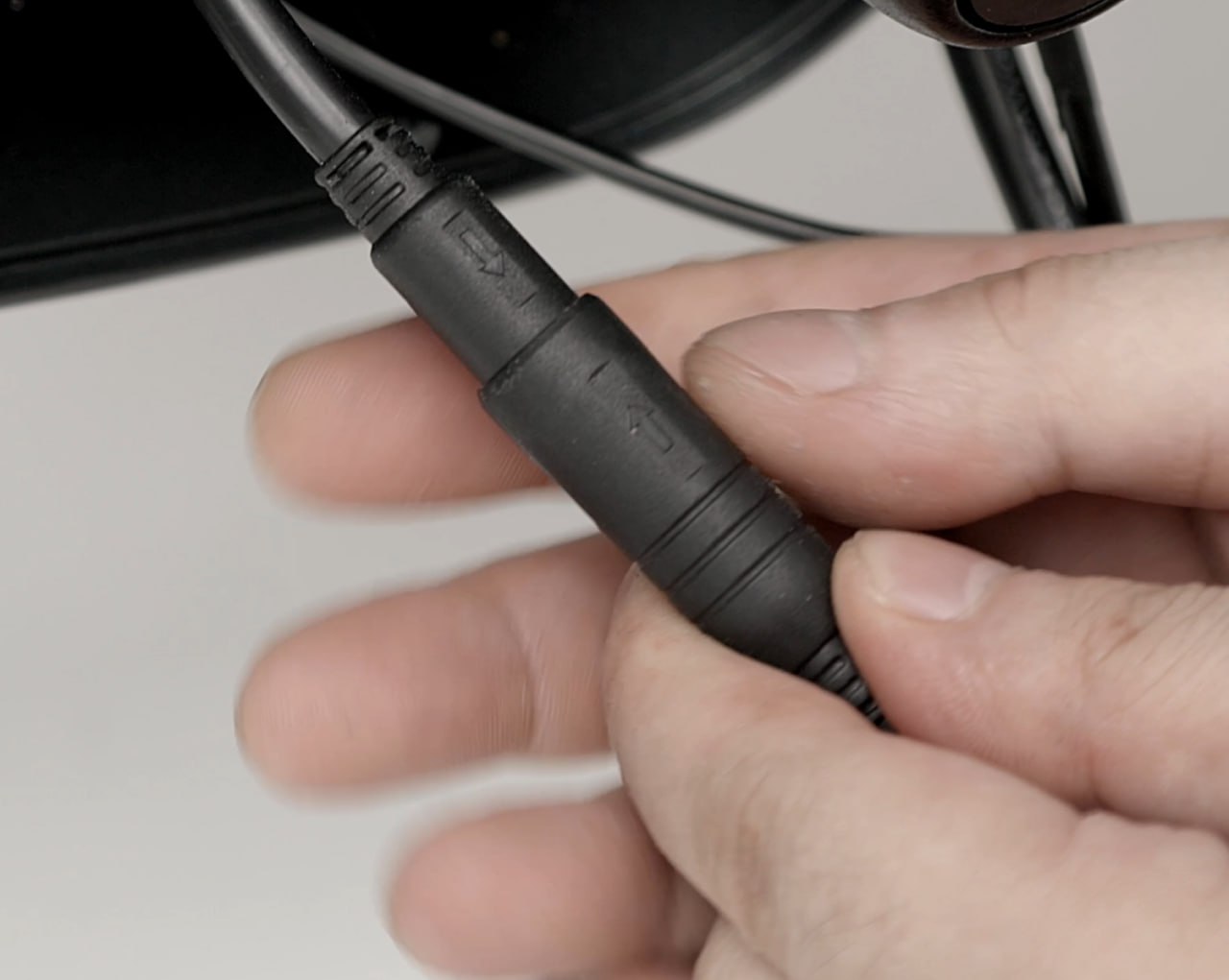

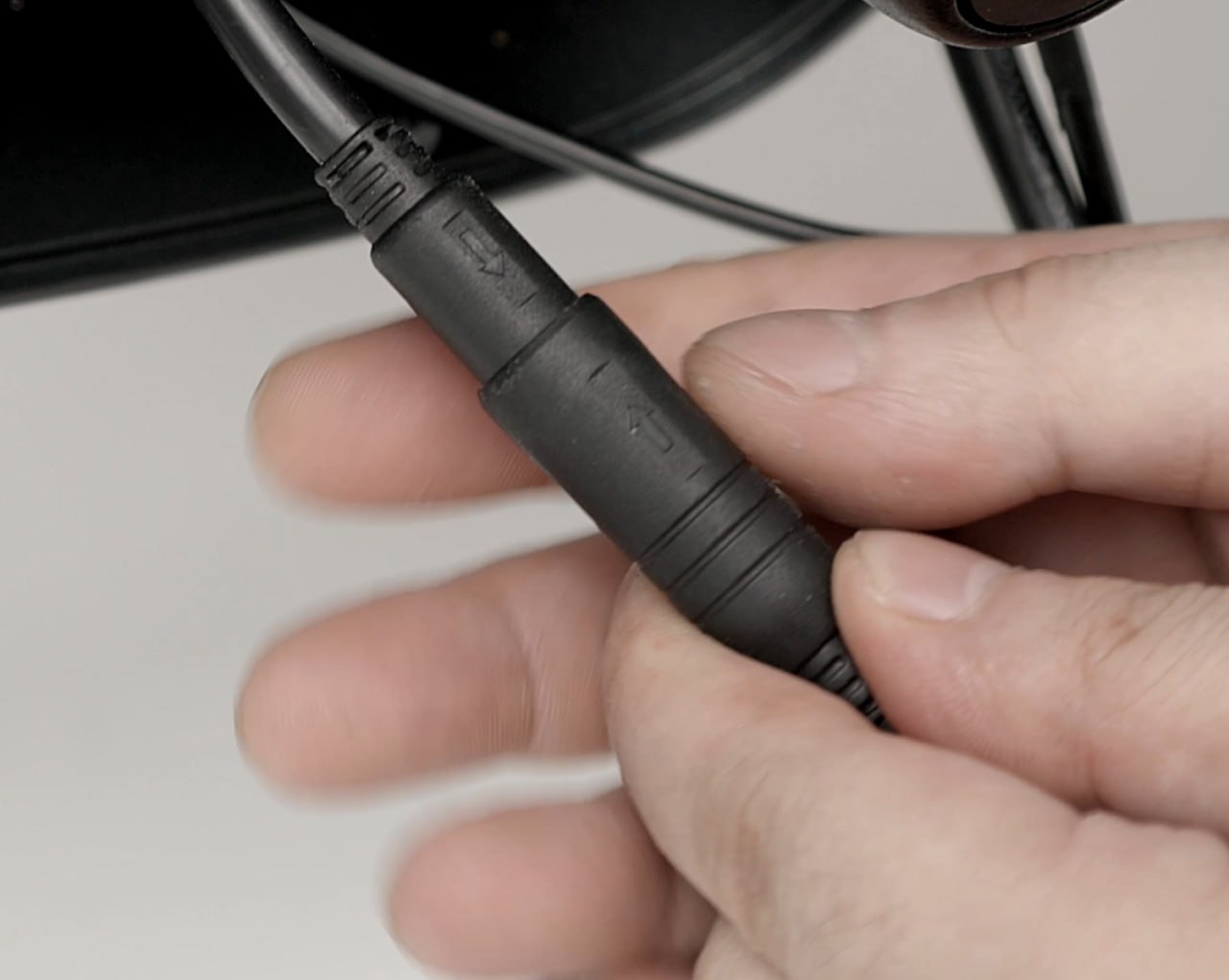

✅ Correct — Fully inserted No gap. Connector seated flush. |

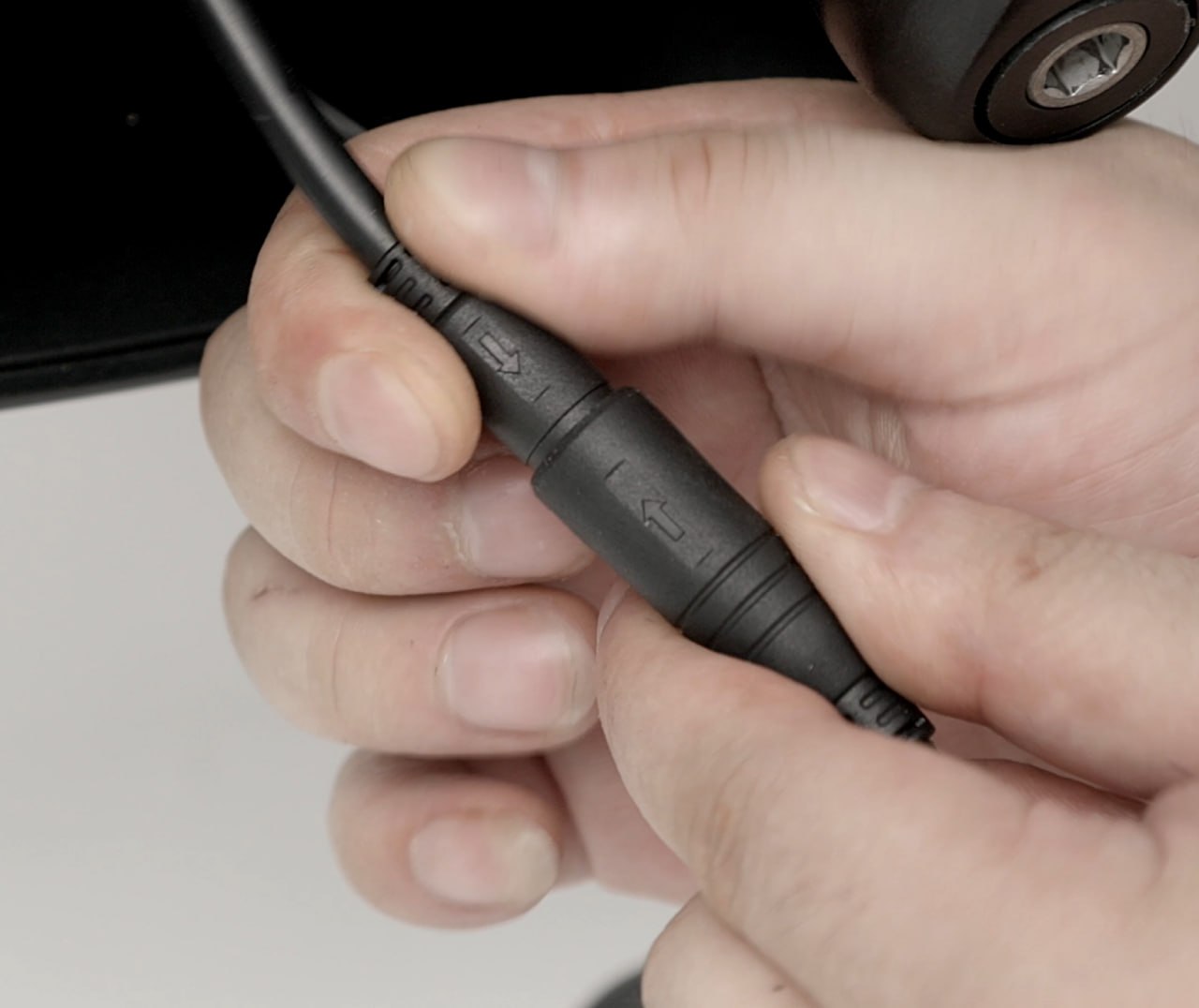

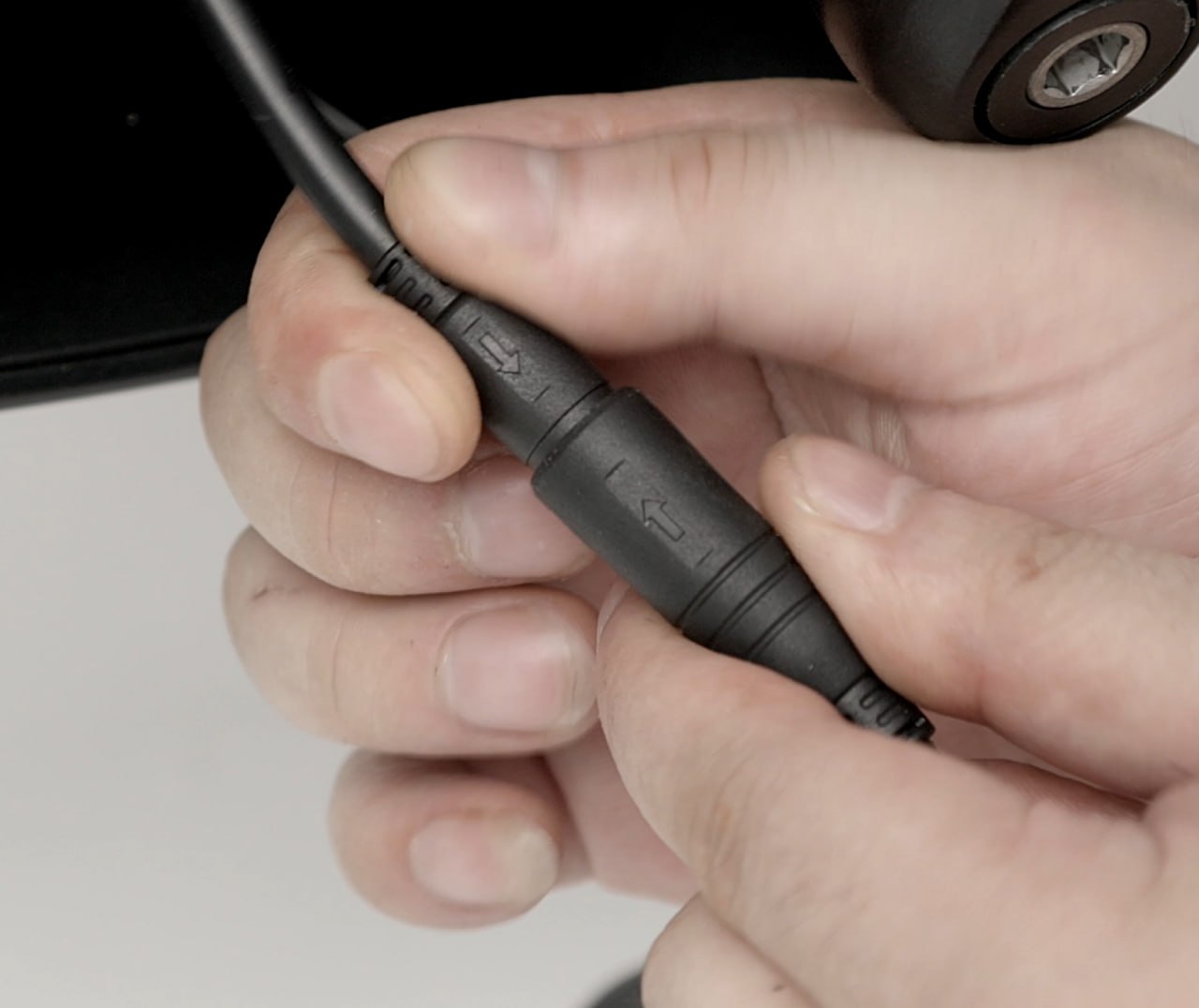

❌ Wrong — Not fully inserted Gap visible. Push further! |
Step 6: Test Connections
- Reconnect battery and turn on the bike
- Check display powers on and motor responds to throttle/pedal assist
Step 7: Secure Wires
- Use zip ties to bundle wires neatly
- Tuck wires into frame, reattach cover
Step 8: Test Ride
- Check motor response, display readings, lights, and smart lock
