When it comes to maintaining or upgrading your electric bike (e-bike), removing the throttle is one task that may come up. The job becomes simpler if your e-bike has a quick-disconnect feature for the throttle cable. In some cases, you might also need to remove the brake lever and grip to fully detach the throttle. This guide covers all these aspects.
- 5mm Allen Wrench
- 3mm Allen Wrench
- Make sure your e-bike is stable, preferably on a bike stand.
- Always disconnect the e-bike's battery before starting.
Step 1: Identify Components
Locate the throttle assembly, brake lever, and grip on the handlebars. Identify the quick-disconnect point for the throttle cable.

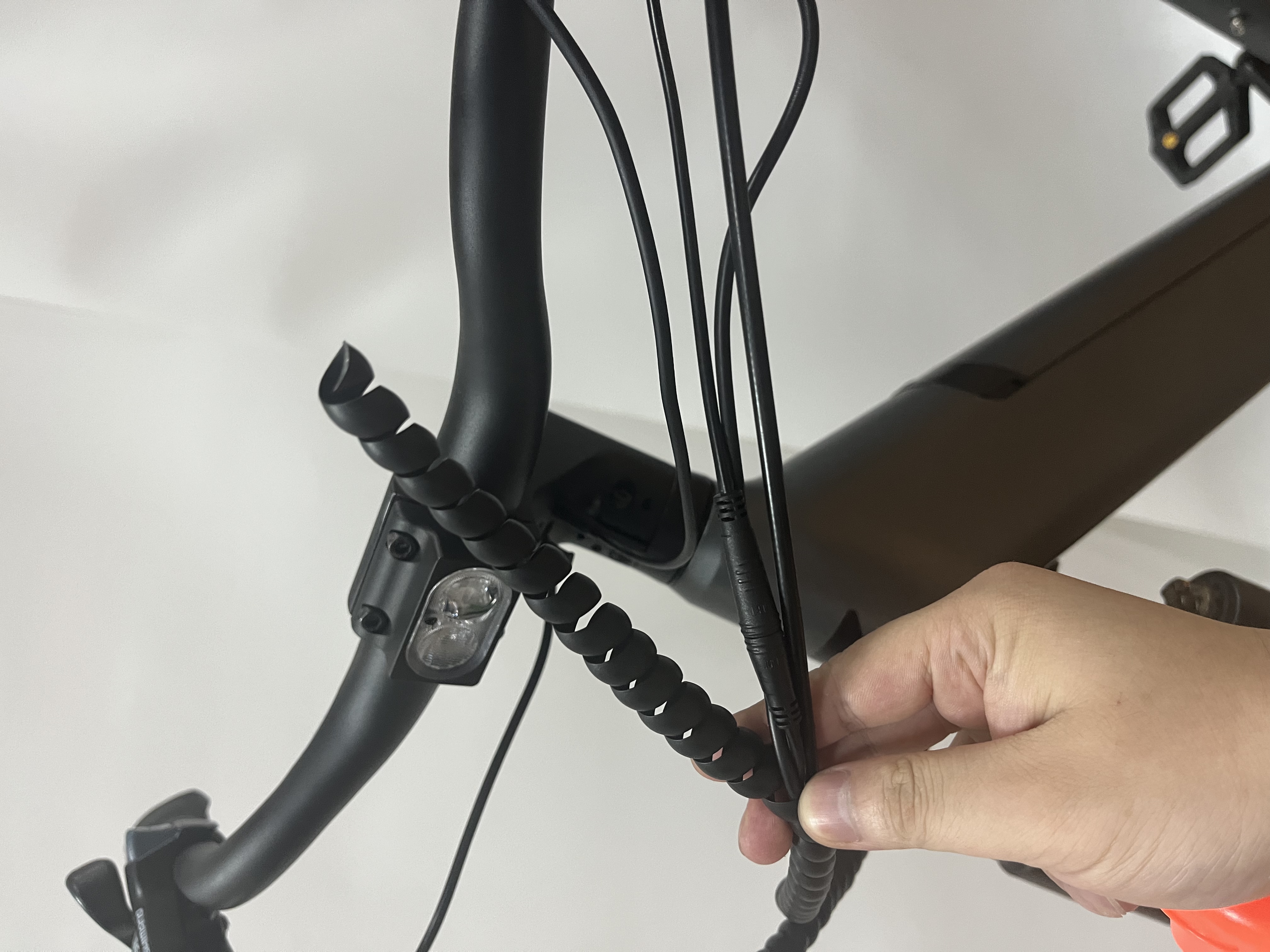

Step 2: Unwrap Cable Management Wrap
- Locate the cable management wrap that covers the throttle cable.
- Unroll the wrap to expose the throttle cable and quick-disconnect mechanism.
Step 3: Remove the Brake Lever and Grip
Before you can remove the throttle, you might also need to take off the brake lever and grip.
- For grips, if they are lock-on types, use an 3mm Allen wrench to loosen the bolts. For regular grips, you can use a flat-head screwdriver to gently pry them off or roll them down the handlebar.
- Loosen the screws or bolts on the brake lever using a 5mm Allen wrench. Slide the lever off the handlebars.

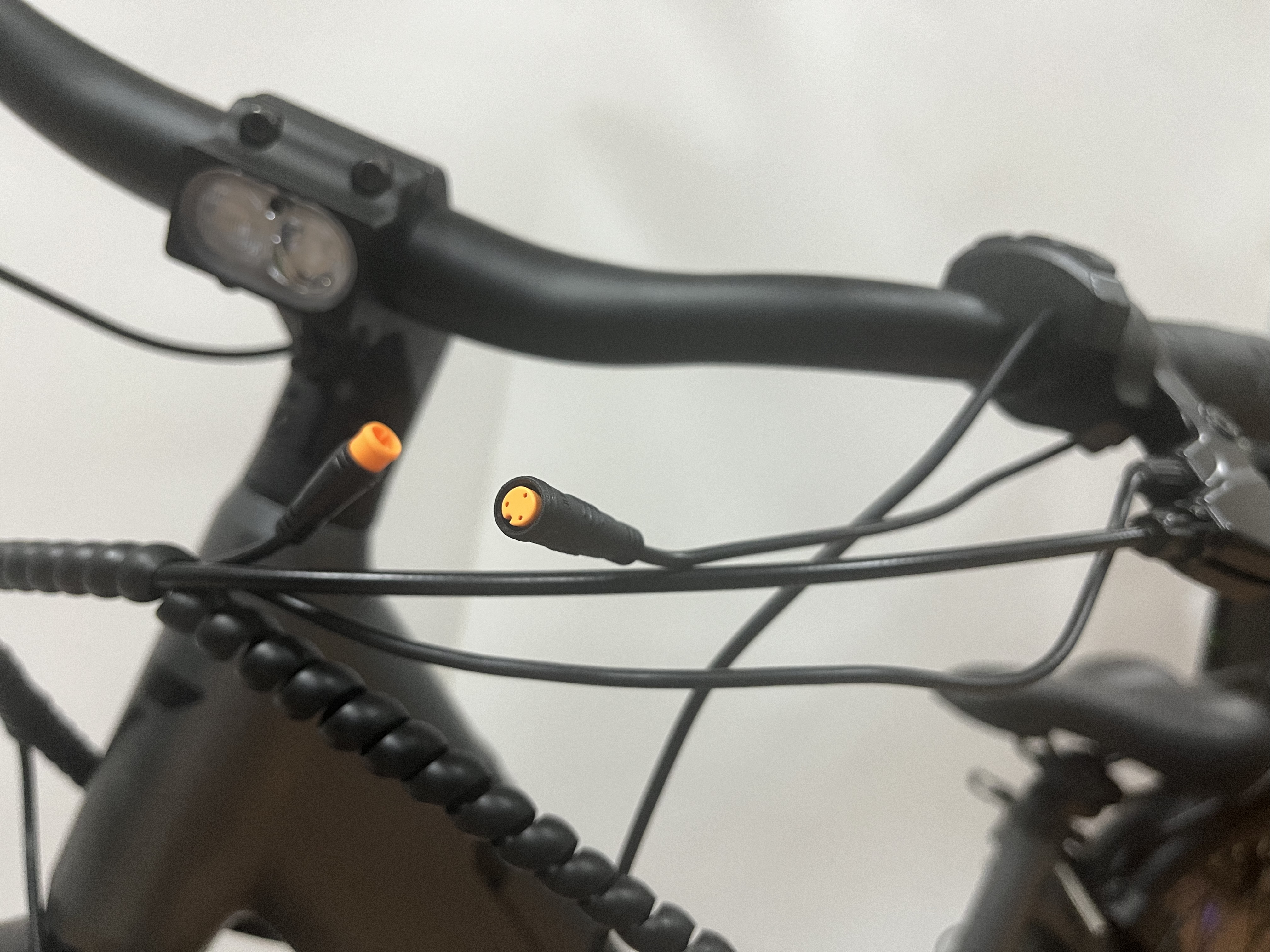

Step 4: Activate Quick-Disconnect
Use the quick-disconnect feature—often a button or latch—to separate the throttle cable from the bike's system.
Step 5: Detach Throttle from Handlebars
- Use the 3mm Allen wrench or a screwdriver to loosen the fasteners holding the throttle in place.
- Slide the throttle off the handlebars.
Step 6: Free the Throttle Cable
Gently guide the throttle cable back through any guides or loops on the bike's frame to completely free it.
Step 7: Inspect and Store the Throttle
Once removed, inspect the throttle for any signs of wear or damage. Clean and store it properly if you plan to reuse it.
Step 8: Reinstall the Grip
For Lock-on Grips:
- Slide the grip back onto the handlebars.
- Use a 3mm Allen wrench to tighten the bolts until the grip is secure.
For Regular Grips:
- Wet the inside of the grip slightly with water or a bit of soap for lubrication.
- Slide the grip onto the handlebar and adjust its position as needed.
- Allow time for the grip to dry and adhere to the handlebar.
Step 9: Reinstall the Brake Lever
- Position the brake lever on the handlebars according to your preference.
- Use a 5 mm Allen wrench to tighten the bolts or screws that hold the brake lever in place. Ensure it is firmly secured but do not overtighten, as this could damage the lever or the handlebars.
Step 10: Re-wrap Remaining Cables
If you aren't immediately replacing the throttle, use the cable management wrap to neatly bundle the remaining cables on the frame.
Removing an e-bike throttle, especially one with a quick-disconnect, is relatively straightforward when you have the right tools and instructions. Whether you're replacing the throttle or making other upgrades, these steps should help you safely and efficiently complete the task. Always adhere to safety protocols and, when in doubt, consult with a professional technician.
