Learn how to properly align and tighten your bike's stem, front wheel, and fork with our straightforward guide. Ensure safety and precision for a smoother ride.
If your front steering (including the fork and handlebar) is wobbling or feels shaky, it's likely because the screw in step 3 isn't tight enough. To fix this, you'll need to remove the display and tighten the screw. For instructions on removing the display, please refer to the article linked here: Replacing the Favoritebikes Display – Favoritebikes

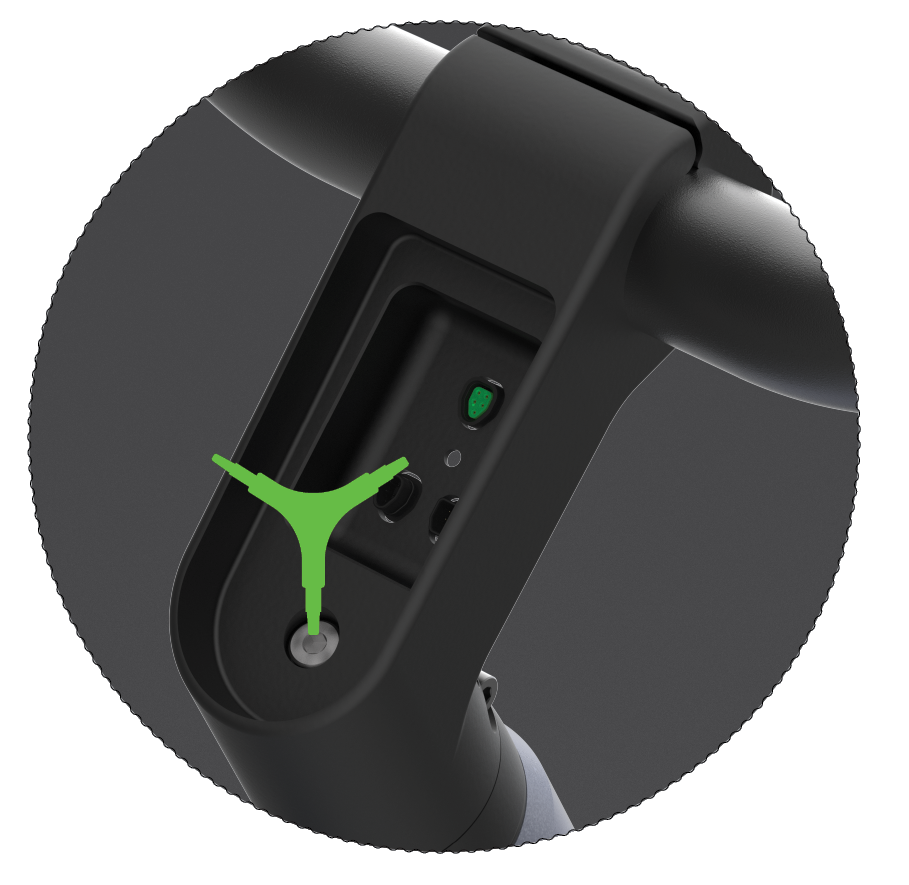

Step 1: Loosen the Stem Clamp Bolts ( Must do this step first)
- Before adjusting the headset, loosen the stem clamp bolts using a 4mm Allen key.
- If the stem clamp bolts are tight, you won’t be able to adjust the top cap bolt in the next step.

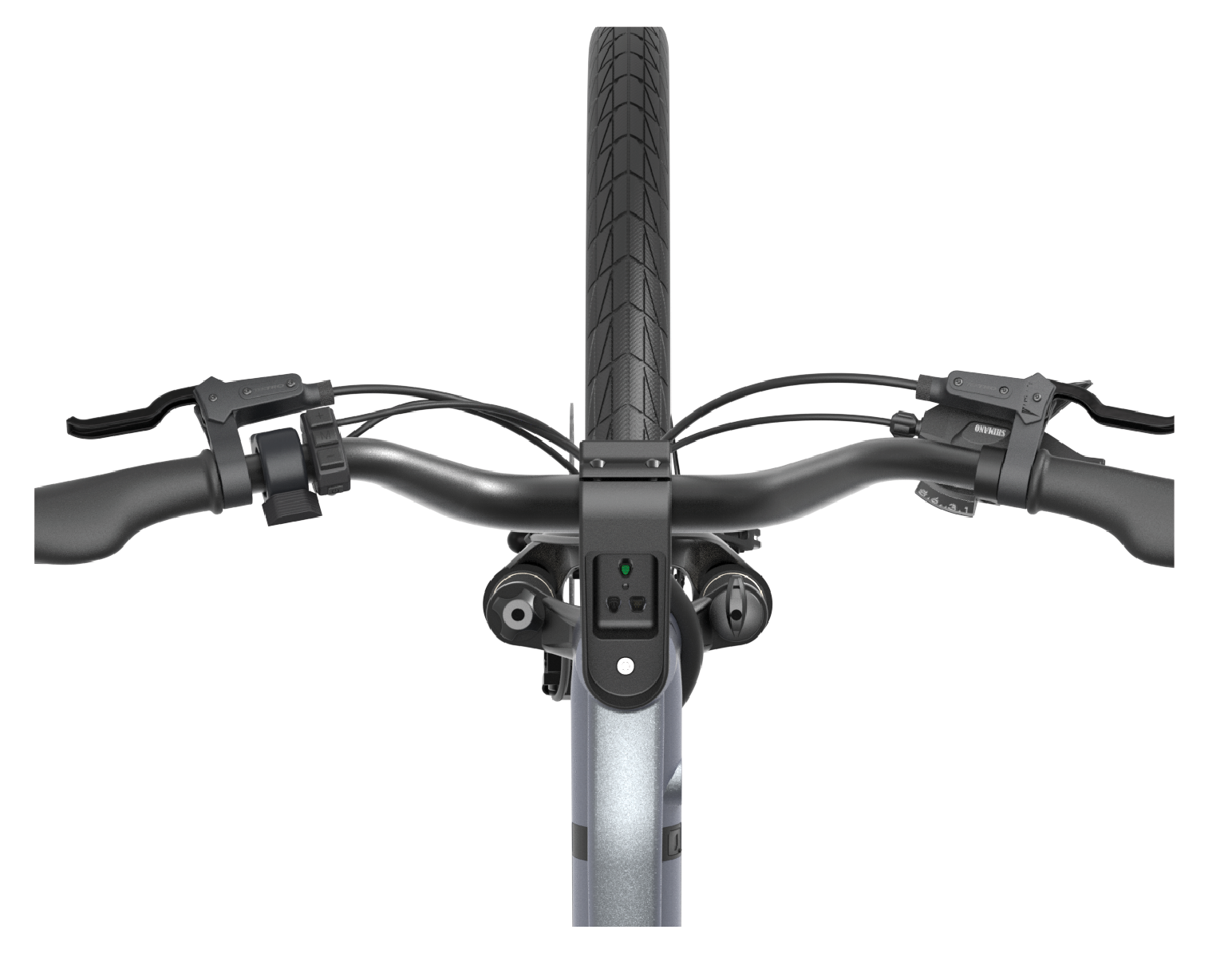

Step 2: Align the Handlebars with the Front Wheel
- Stand over the bike and look down at the handlebars, ensuring they are aligned with the front wheel.
- Hold the front wheel between your legs and twist the handlebars until they are properly aligned with the wheel and fork.

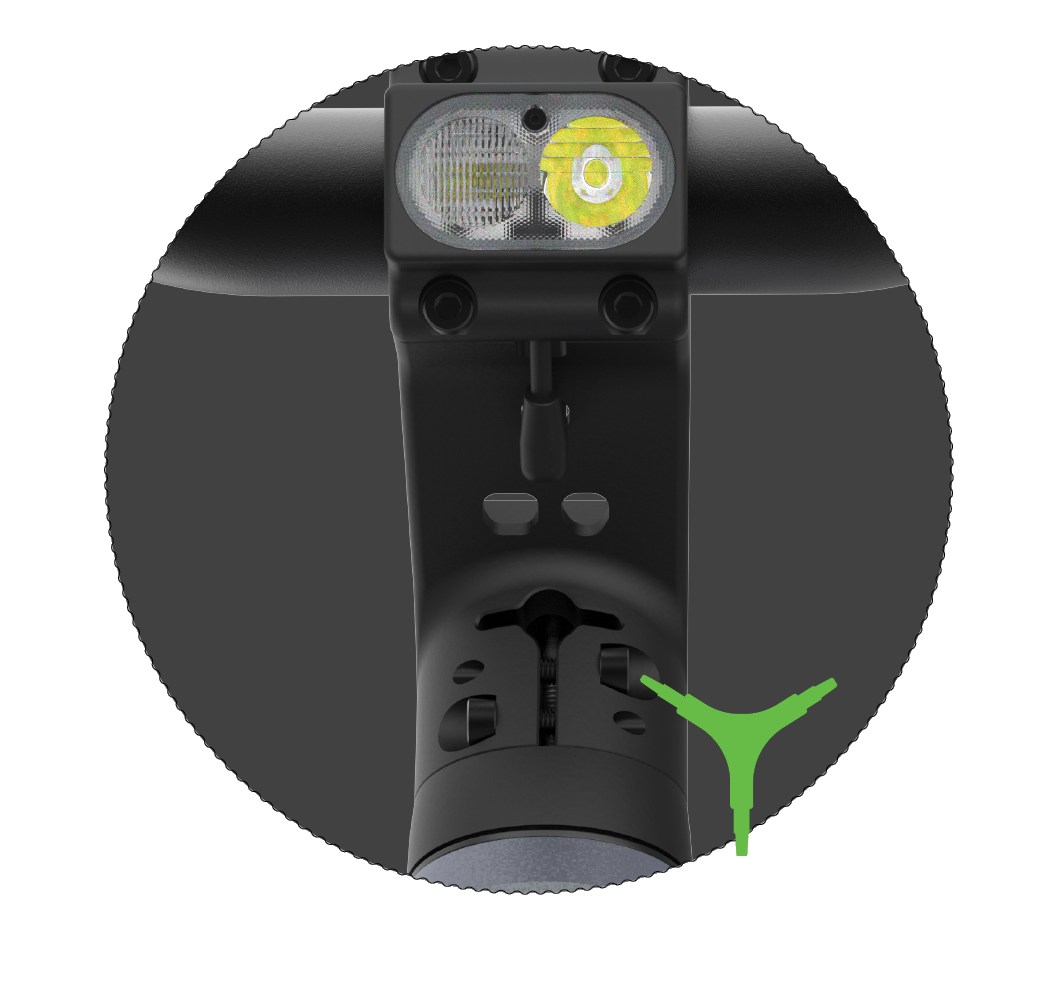

Step 3: Preload the Headset Bearings
- Using a 4mm Allen key, tighten the top cap bolt. This will preload the headset bearings.
- Do not overtighten—over-tightening may cause the headset to bind and affect steering.

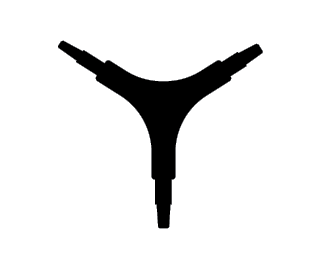

Tool: 4mm Allen key
Step 4: Secure the Stem Clamp Bolts
- Once the headset is adjusted, tighten the stem clamp bolts evenly in a crisscross pattern to ensure even clamping force.
- Use a 4mm Allen key, tightening the bolts to 4-6 Nm of torque.
Tool and Torque : 4mm Allen key 4-6 Nm
