How to Replace the Stem on Your Bike
Replacing the stem on your bike is an essential task that can improve your riding comfort and safety. Whether you're upgrading components or addressing an issue, this guide will walk you through the steps to replace your bike's stem properly.
Step 1: Remove the Old Stem and Install the New One

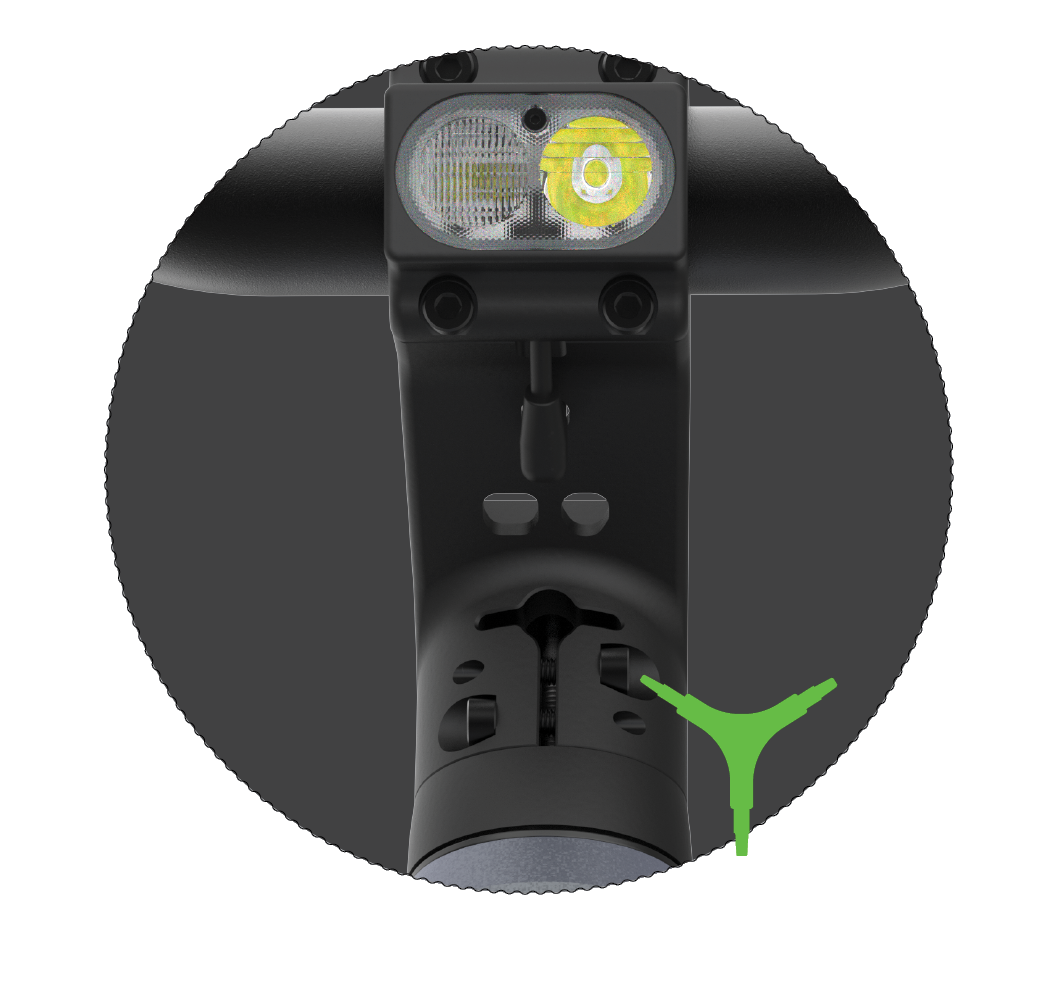

Begin by removing the display. For detailed instructions, please refer to this article: Replacing the FavoriteBikes Display – FavoriteBikes. Next, use an Allen key to loosen the bolts on the stem that secure it to the steerer tube and handlebars. Carefully loosen these bolts until the stem can be gently slid off the steerer tube.
Once the old stem is removed, you can now slide the new stem onto the steerer tube.
Warning: Completing step 4 before step 3 may cause the fork to wobble and become unstable in the bike frame. This is because the clamping screws in step 3 lock the stem in place. If the top screw is tightened after the clamping screws, it will only work against the clamping screws instead of securing the stem and fork together
Step 2:

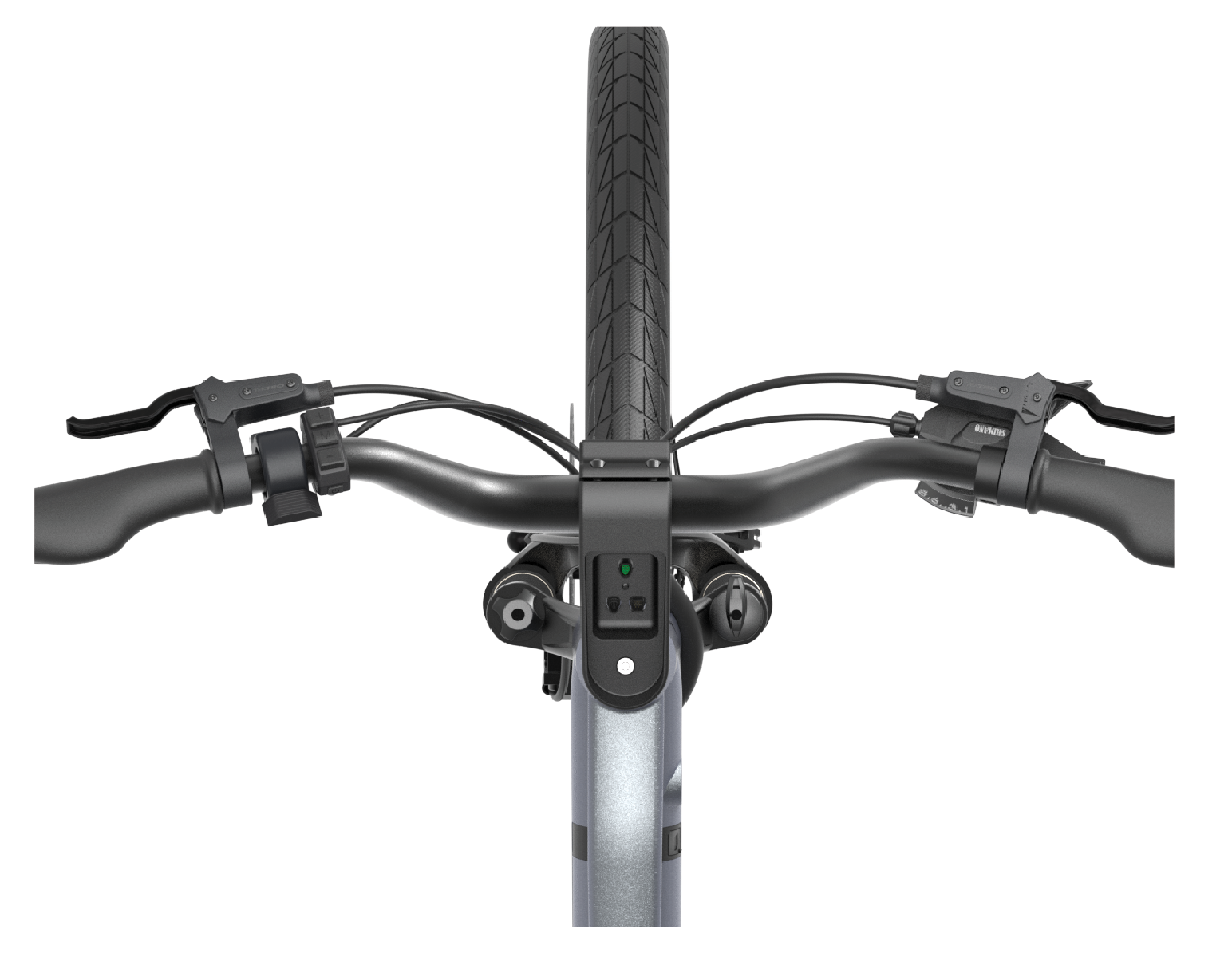

Stand over the bike and look down at the handlebars, comparing the front wheel with the handlebars. While holding the front wheel between your legs, twist the handlebars until the wheel is aligned with the handlebars and fork.
Step 3:

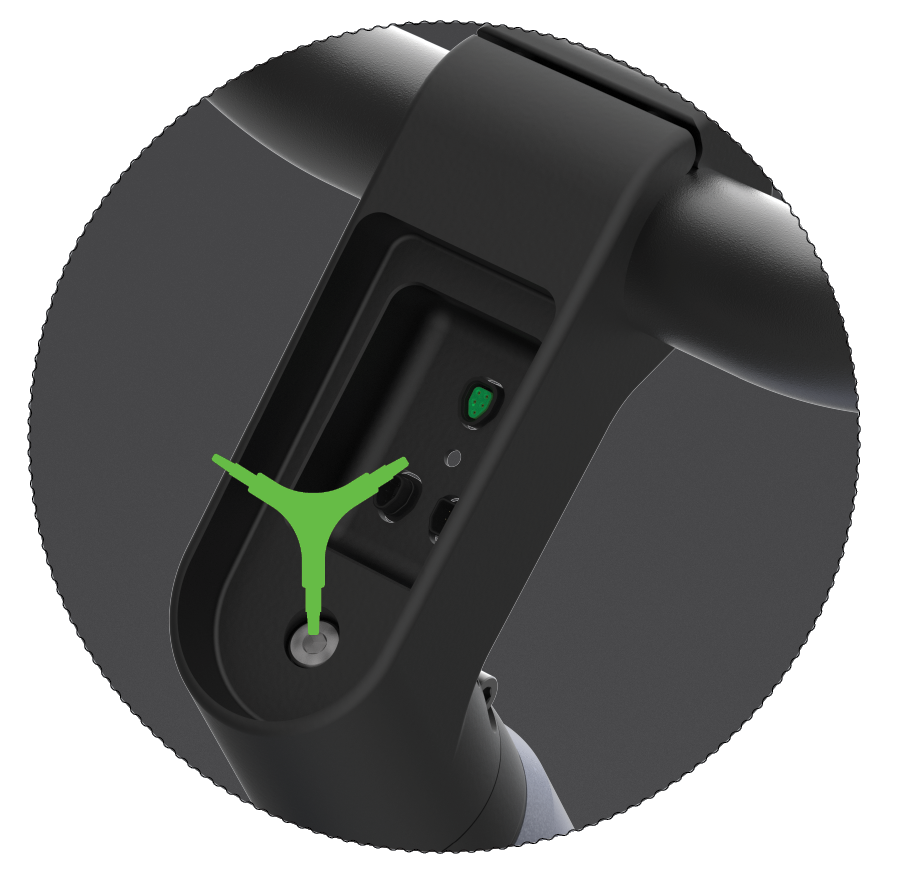

Tighten the top cap bolt with an Allen wrench. This will preload the headset bearings. Do not overtighten the top cap bolt, as this may cause the headset to bind and affect steering.

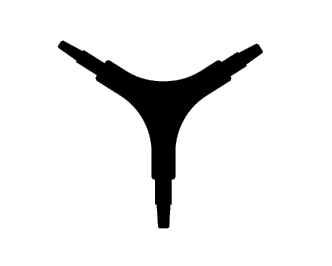

Tool: 4mm Allen key
Step 4:
Tighten the stem clamp bolts evenly in a crisscross pattern. Apply equal pressure to both bolts to ensure even clamping force.
Tool and Torque : 4mm Allen key 4-6 Nm
