About Your Suspension Fork

Your FavoriteBikes StormX comes equipped with a TRAMA suspension fork. This guide covers daily care, adjustment settings, and maintenance schedules to keep your fork performing at its best.

⚠️ Safety Warnings

• Inspect your fork before every ride — check the crown, inner legs, outer legs, dropout, and brake arch for cracks, bending, leaking, or damage.
• Do not ride if any parts are damaged — bent, cracked, or leaking forks are unsafe.
• Never remove the steerer tube or stanchions from the crown — they are precision press-fit at the factory. Removing them will permanently damage the fork.
• Do not add threads to a threadless steerer tube — this weakens the tube and creates an unsafe condition.
• Do not modify the fork without consulting a qualified bicycle mechanic.

Break-In Period

Your fork needs approximately 20 hours of riding time to break in. During this period, the fork may feel slightly tight or notchy. After break-in, it will feel significantly smoother and more responsive.

Adjustments

Preload Adjustment (Spring Tension)

Adjust the preload to match your weight for optimal performance:

• Turn clockwise → stiffer spring (for heavier riders)
• Turn counter-clockwise → softer spring (for lighter riders)

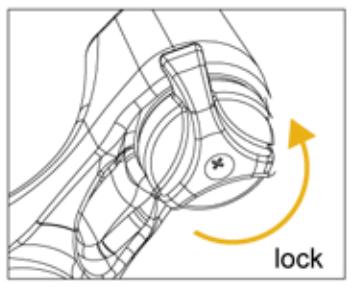

Lock-Out

Lock-out stiffens the fork for flat roads and uphill riding to save energy.

• Lever lock-out: Use the handlebar-mounted lever to lock/unlock
• Gradual adjustment: Some models allow you to adjust compression from fast to slow, all the way to full lock-out
• Safety feature: If the fork encounters a heavy impact while locked out, it will automatically release and return to lock-out afterward

💡 Tip: If the lock-out knob won't turn, lightly compress the fork first, then try again.

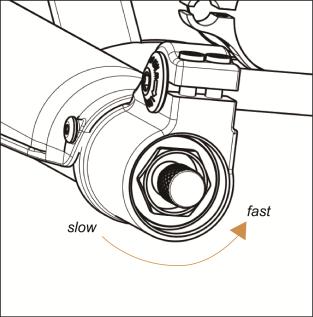

Rebound Adjustment

Controls how fast the fork returns to its extended position after being compressed:

• Turn clockwise → slower rebound
• Turn counter-clockwise → faster rebound

Adjust to your preference — slower rebound provides more control on rough terrain.

Maintenance Schedule

Before Every Ride

• Ensure quick release skewers are properly tightened
• Wipe the inner legs clean and inspect the entire fork for damage
• Check headset for proper adjustment
• Verify front brake cable routing and adjustment
• Check top caps, brake posts, and shaft bolt torque

Every Week (or 8–10 hours of riding)

• Check top caps, brake posts, and shaft bolt for proper torque
• Apply a light amount of grease to the wiper seals and stanchions

Every 4 Weeks (or 25–30 hours of riding)

• Disassemble fork and thoroughly clean all grease and residue
• Inspect all parts for cracks, abrasions, and wear — replace damaged parts immediately
• Apply liberal grease to upper/lower bushings, stanchions, valve assembly, and wipers
• Fill the wiper pocket generously with grease
• Do not use lithium-based grease — it may damage the bushing material

Full Service Intervals

Bushing Replacement

If you notice excessive play between the stanchion and outer leg, the bushings may need replacement. This requires special tools and should only be done by a qualified mechanic. Contact FavoriteBikes Support for assistance.

Warranty

The TRAMA fork is covered under a 1-year warranty from the date of purchase against defects in materials and workmanship. The warranty does not cover:

• Damage from crashes, collisions, or misuse
• Improper installation or maintenance
• Paint damage
• Use in stunt riding, ramp jumping, or similar activities

Need Help?

If you have questions about your suspension fork or need service, contact FavoriteBikes Support.
