Importance of Following Torque Values for Bike Screws

Ensure safety and performance by following proper torque values for bike screws. Learn how to tighten bike components without a torque wrench.

When assembling or adjusting various parts of your e-bike, it's crucial to follow the recommended torque values for each screw or bolt. Ensuring that these components are correctly tightened not only guarantees your safety but also prolongs the life of your bike. Below, we'll cover the importance of proper torque settings for key bike components like the bike stem bolts, front quick release skewer, front rotor screws, disc brake caliper screws, rear wheel axle bolts, pedals, and crank arms.

1. Bike Stem Bolts

The bike stem is the part that connects your handlebars to the steering tube of the fork. Over-tightening the stem bolts can crush the handlebars or steering tube, potentially causing them to fail while riding. Under-tightening, on the other hand, can lead to loose handlebars, making your bike unstable.

  • Recommended Torque: 5-6 Nm (Newton meters)
  • Without a Torque Wrench: Tighten the bolts snugly using an Allen key, applying even pressure across all bolts. The bars should not move when you try to twist them.
  • Hybrid CSC1.31.png
  •

2. Front Quick Release Skewer

The front quick release skewer holds your front wheel in place. If this skewer is too loose, the wheel can detach while riding, leading to a dangerous situation. If it's too tight, you could damage the hub bearings or make it difficult to remove the wheel.

  • Recommended Torque: Firmly closed with moderate resistance.
  • Without a Torque Wrench: Close the lever until it’s snug, then push it down with enough force that it leaves an imprint in your palm, but without requiring excessive strength.

3. Front Rotor Screws

These screws hold the brake rotor to the hub. Loose screws can cause the rotor to wobble or detach, affecting your braking performance. Over-tightening can strip the threads or damage the rotor.

  • Recommended Torque: 6-7 Nm
  • Without a Torque Wrench: Use a Torx key to tighten these screws snugly in a star pattern (tighten in a crisscross fashion). Ensure the rotor is secure without overdoing it.

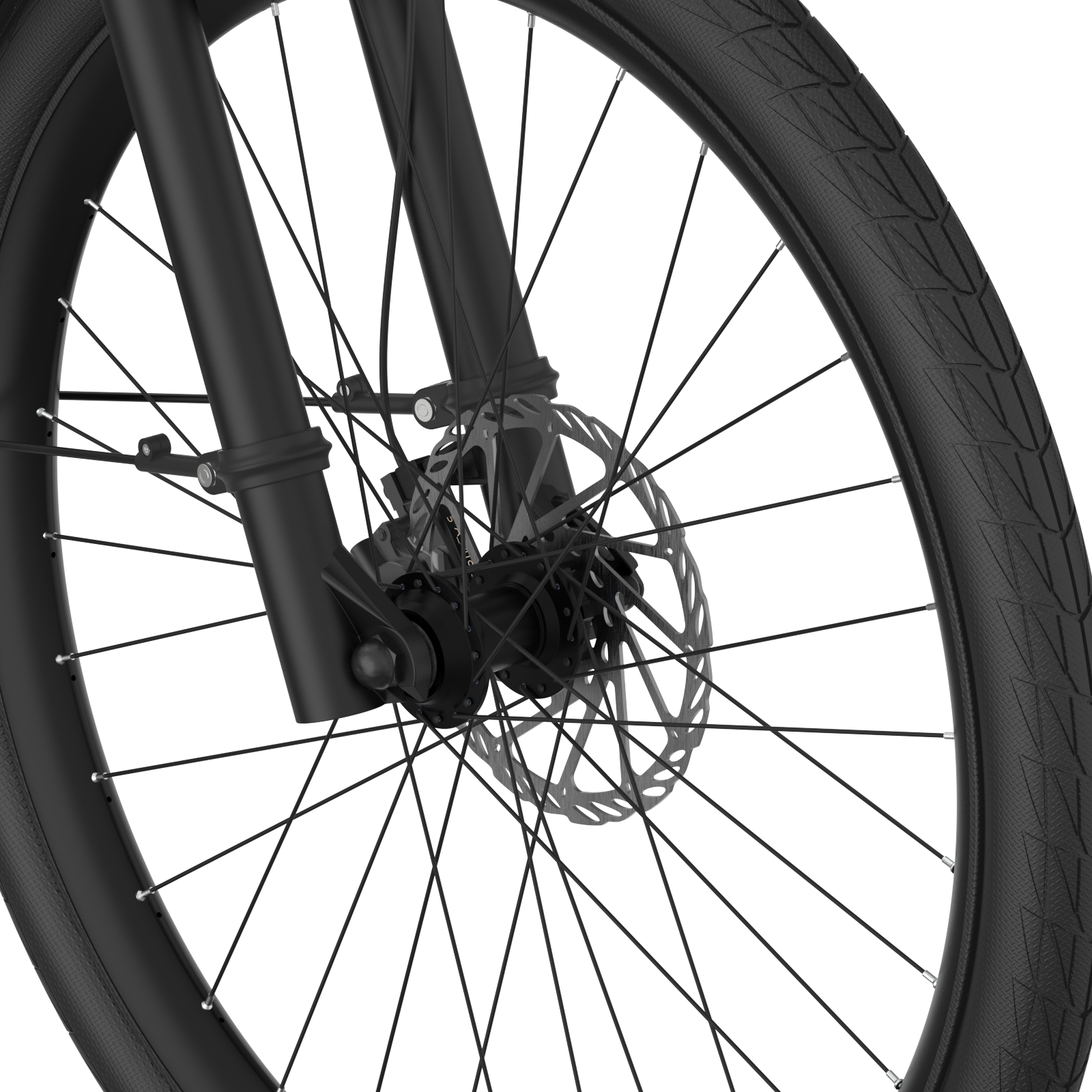

  • Hybrid CSC1.29.png

4. Disc Brake Caliper Screws (This part is pre-installed when you receive the bike. However, we want to list it here in case you need to adjust or replace it in the future.)

While disc brake calipers are usually pre-installed, you might need to adjust or replace them. Loose caliper screws can cause brake pads to misalign, reducing braking efficiency. Over-tightening can warp the caliper or strip the threads.

  • Recommended Torque: 7-8 Nm
  • Without a Torque Wrench: Tighten the bolts evenly until the caliper is secure. The caliper should not shift when applying the brakes.

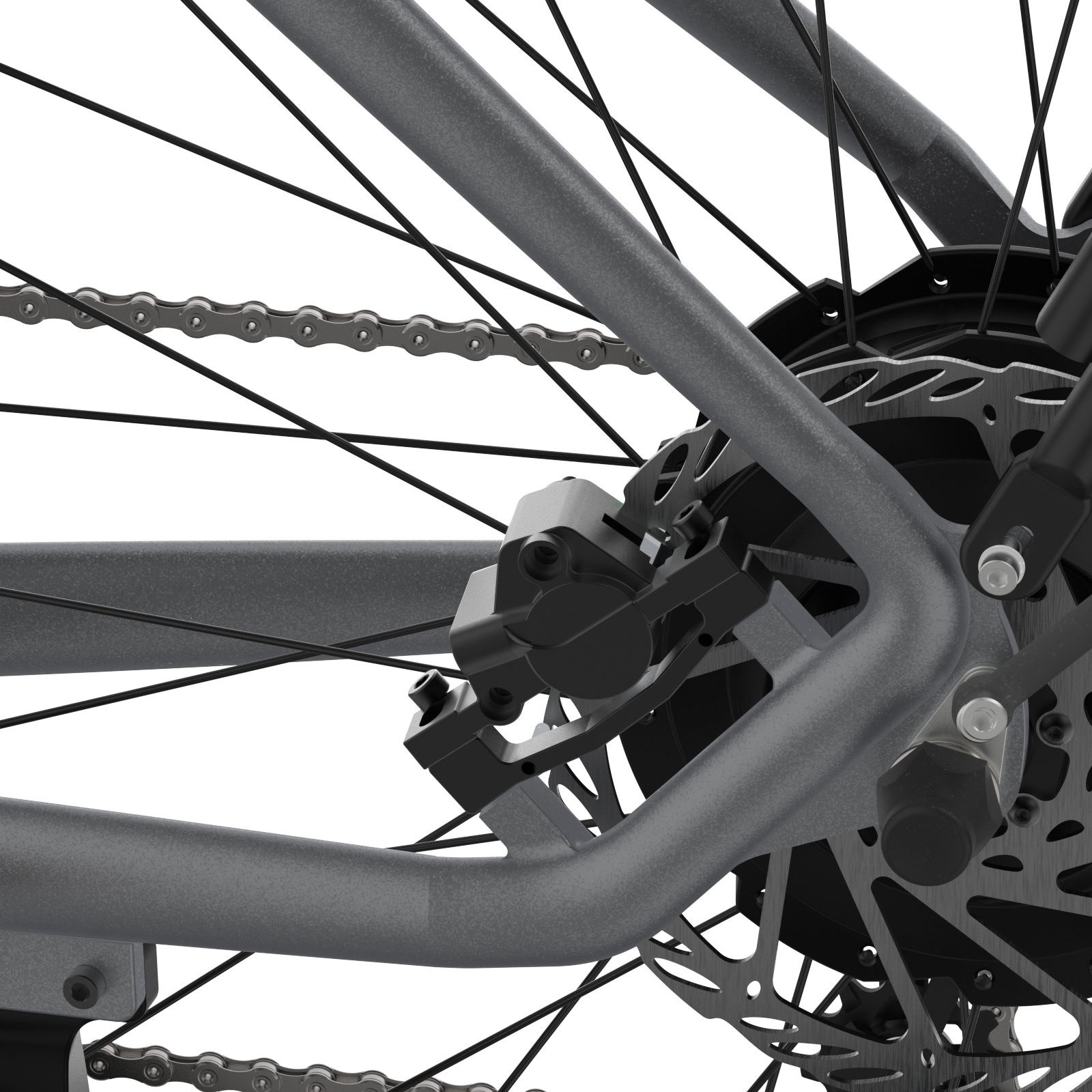

  • Hybrid CSC1.35.png

5. Rear Wheel Axle Bolts (This part is pre-installed when you receive the bike. However, we want to list it here in case you need to adjust or replace it in the future.)

The rear wheel axle bolts hold your rear wheel in place. If these bolts are too loose, your rear wheel could come off, especially when riding over bumps. If they're too tight, it could damage the axle threads or hub bearings.

  • Recommended Torque: 35-40 Nm
  • Without a Torque Wrench: Tighten the bolts firmly with a wrench, ensuring that the wheel is properly seated in the dropouts and does not wobble.
  • Hybrid CSC1.32.png

6. Pedal to Crank Arm

Pedals that are not securely fastened to the crank arm can loosen while riding, causing damage to the threads in the crank arm or leading to a dangerous loss of control. Over-tightening can strip the threads or make future removal difficult.

  • Recommended Torque: 35-40 Nm
  • Without a Torque Wrench: Tighten the pedals firmly with a pedal wrench. You should apply enough force that the pedals feel solid, but avoid using excessive strength.

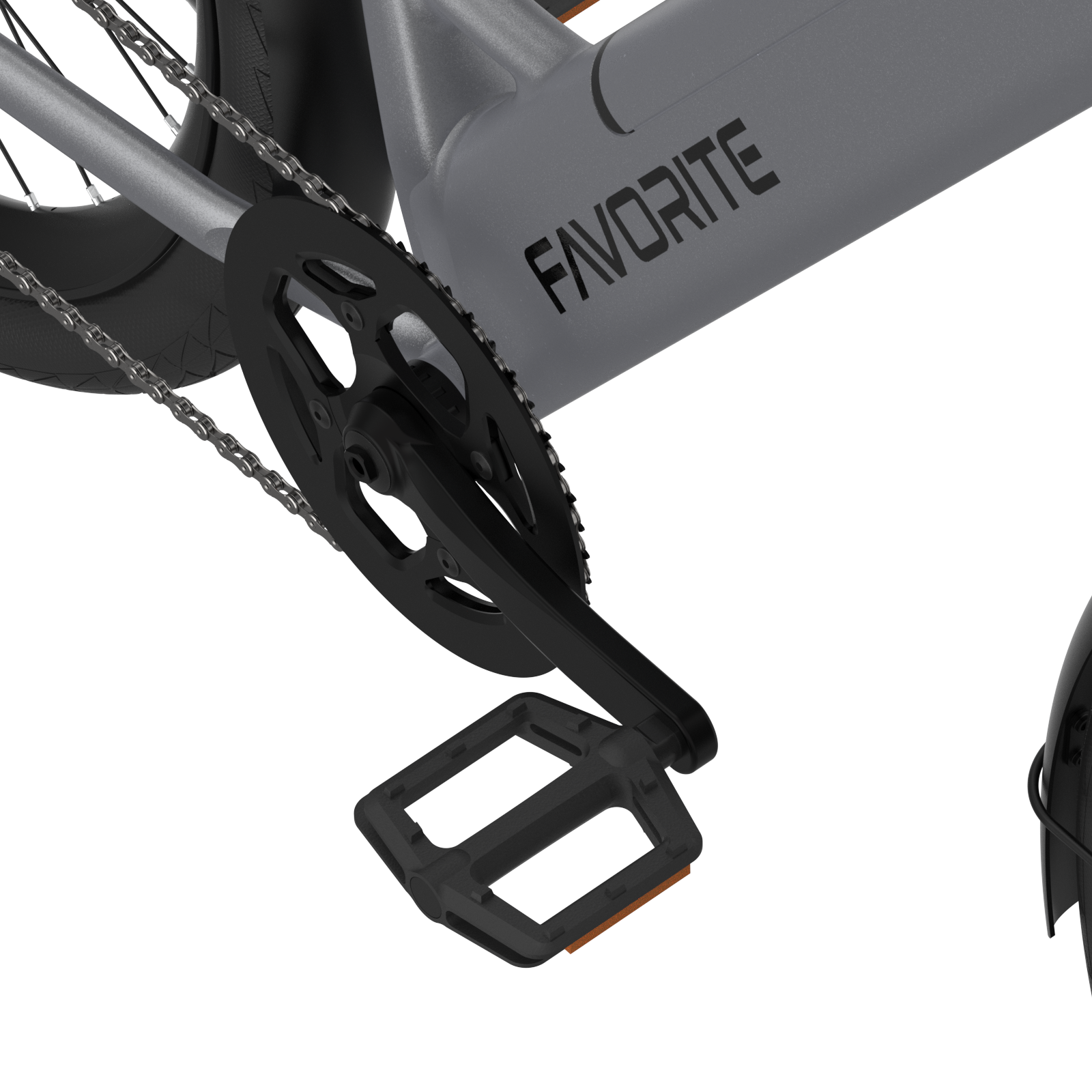

  • Hybrid CSC1.30.png

7. Crank Arm to Bottom Bracket (This part is pre-installed when you receive the bike. However, we want to list it here in case you need to adjust or replace it in the future.)

The crank arms attach to the bottom bracket, allowing you to pedal efficiently. Loose crank arms can cause wobbling or detachment, while over-tightening can strip the threads or damage the bottom bracket.

  • Recommended Torque: 35-50 Nm
  • Without a Torque Wrench: Use a wrench to tighten the crank arm bolt until the crank is firmly attached and does not move when you push it from side to side.
  • Hybrid CSC1.30.png

The Risks of Improperly Tightened Screws

Not following the recommended torque values can lead to serious issues:

  • Safety Hazards: Loose bolts can cause parts to fail while riding, leading to accidents.
  • Damage to Components: Over-tightening can strip threads, crush components, or make future adjustments impossible.
  • Poor Performance: Misaligned parts due to improper torque can result in poor braking, shifting, or overall bike handling.

Tips for Installing Without a Torque Wrench

If you don’t have a torque wrench, use these guidelines:

  • "Snug and Secure": Tighten until the component is secure, but don't force it.
  • Even Pressure: Apply consistent pressure across all bolts, especially when installing components like the stem or brake rotor.
  • Check Regularly: Periodically check the tightness of all bolts to ensure they haven’t loosened over time.

Following the recommended torque values when installing or adjusting your bike components is crucial for your safety and the longevity of your bike. If you don’t have a torque wrench, use your best judgment to tighten screws securely without overdoing it. Remember, regularly checking the tightness of these key components can help prevent accidents and keep your e-bike running smoothly.
